• High-precision detection voltage: ±2%
• Detection voltage: 09V~6.0V (in 0.1V step)
• Precise hysteresis: 4% (Typ.)
• Operating voltage range: 0.7V~10V
• Ultra-low current consumption: 500nA typ. (at VDD=3.0V)
• Two output forms: CMOS (active low) or N-channel open-drain (active low)

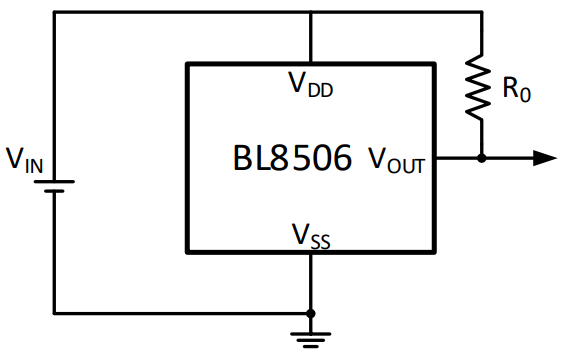

BL8506 is a series of high precision voltage detector with ultra-low current consumption(500nA typ. at VDD=3.0V). It can work at very low voltage, which makes it perfect for system reset. BL8506 is composed of high precision voltage reference, comparator, output driver and resistor array. Internally preset detect voltage has a low temperature drift and requires no external trimming. Two forms of output, CMOS and N-channel open-drain, are available. BL8506 is available in SOT23, SOT23-5, SC-82, SOT89-3, TO-92 packages which are Pb-free.
