• 5 to 36V input voltage range
• Low Power Consumption (IQ<1μA)
• Input High Level Threshold: 3V, compatible with most single chip microcontroller
• Typical Driving Current: 300mA
• Rds(on)=12ohm (Vin=12V, PMOSFET+NMOSFET)
• Rds(on)=10ohm (Vin=30V, PMOSFET+NMOSFET)
• Peak Driving Current: 500mA@Vin=24V
• Environment Temperature: -40℃~85℃
• SOP8 and DIP8 packages

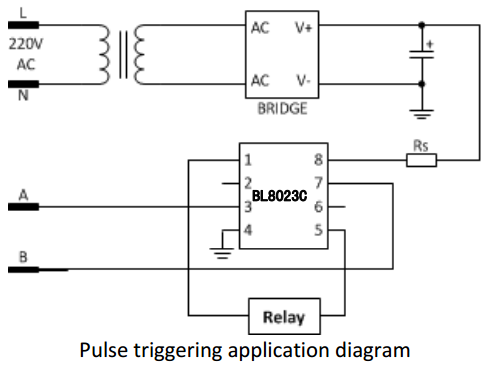

BL8023C is a bi-direction relay driver circuit, used to control the magnetic latching relay, with large output capability, ultra-low power consumption. It can be widely used in smart meters and other pulses, level control applications. BL8023C can provide 300mA typical driving current, which will different according to the relay coil resistance. The input High Level Threshold of BL8023C is 3V, making it compatible with most single chip microcontroller. BL8023C is available in SOP8 and DIP8 packages.
