• Operation voltage range up to 25.0V
• Maximum continuous current output up to 1.5A
• Low RDS(ON) for highly efficient H-bridge output.
• Support PWM control
• Over current protection
• Over temperature protection
• Low standby current
• Low quiescent current
• SOP8 package

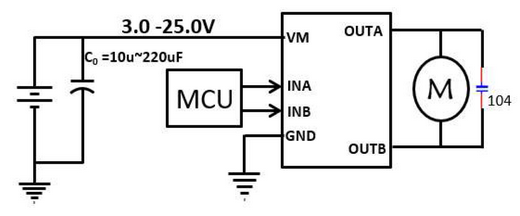

The BL5612 is one channel H-Bridge driver IC, it provides integrated motor-driver solution for toys, robotics, consumer products and other low voltage or battery-powered motion control applications. The BL5612 maximum operational voltage is 25.0V. It can supply up to 1.5A of output continuous current and 3.5A of output peak current. There is internal shutdown function for over-temperature protection and over-current protection (IOCP = 4.5 A).
